Overview

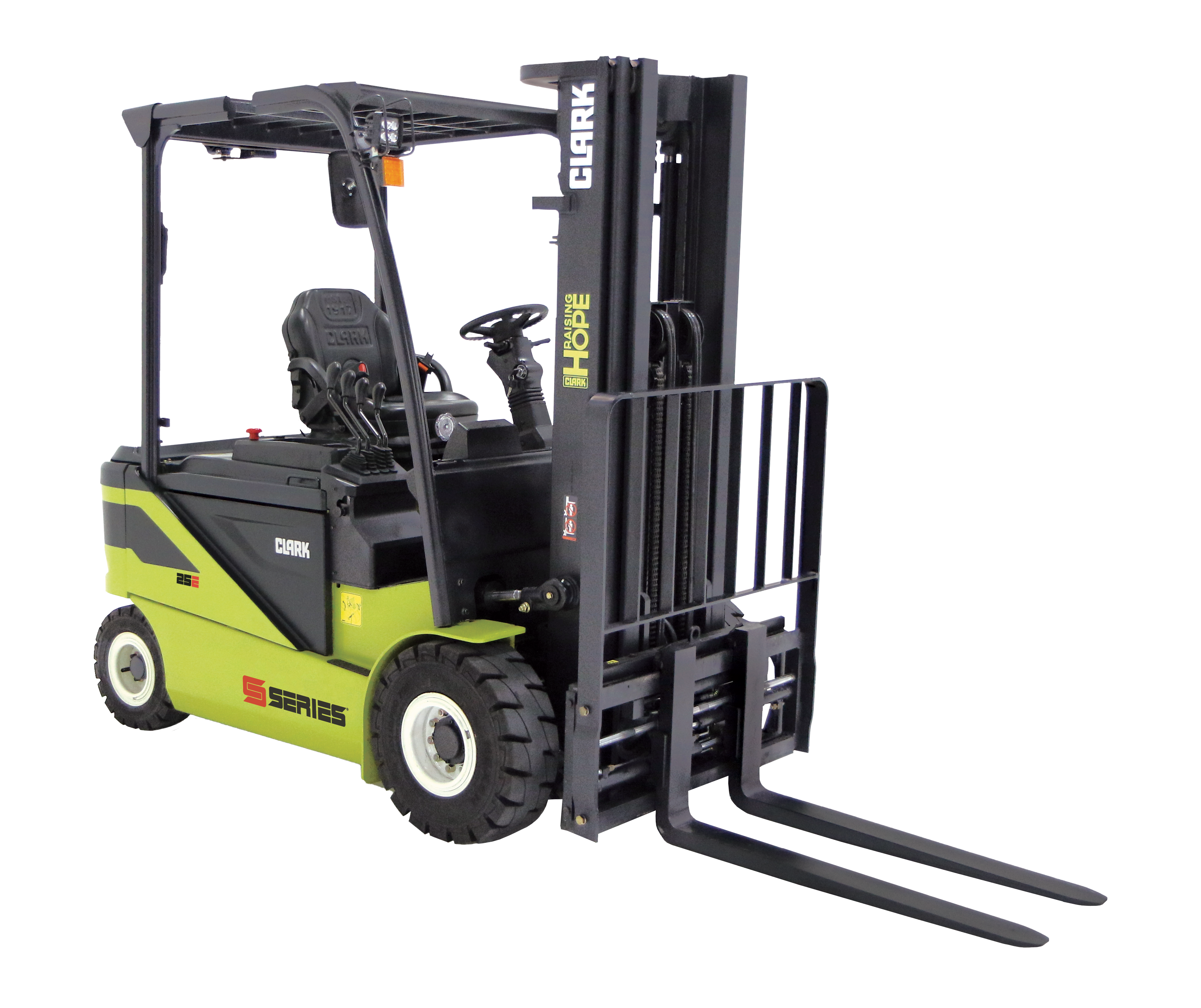

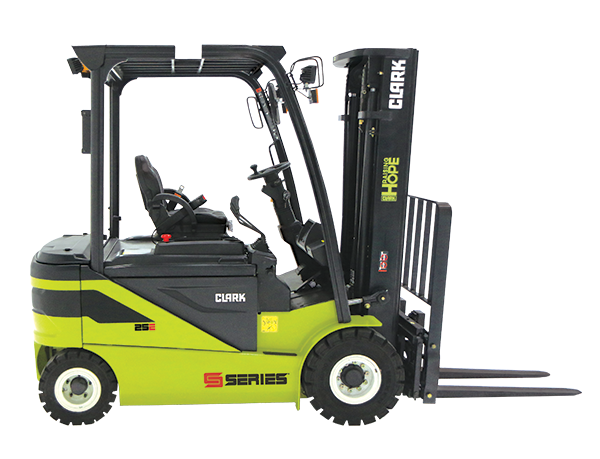

SE25-35
Increase your productivity while minimizing cost with the SE25-35. With the ability to seamlessly transition between indoor and outdoor spaces, operations no longer need two trucks to accomplish what the SE25-35 alone. The low profile, wide stance, and durable composition of the SE25-35 makes it ideal for operations with paved outdoor spaces, as well as indoor manufacturing facilities.
Find Dealer
Features
SMART
The SE25-35 integrates SMART features such as a 5.6-inch LCD SMART Dash for on-board diagnostics, ZAPI controllers for advanced control and communication, three selectable performance modes along with Turtle Mode for ultimate operational control, an integrated 80V Lithium-Ion Battery with diagnostics displayed on the SMART Dash, and a vertical mast system enabling fork leveling irrespective of tilt.
STRONG
The SE25-35 exemplifies CLARK’s Built to Last commitment with STRONG features, including a full capacity range of 4,000 to 7,000 pounds to meet diverse needs, an integrated maintenance-free Lithium-Ion battery that requires no watering, a fully welded heavy gauge frame, and a six-roller carriage with side thrust rollers for enhanced stability and reduced mast deflection.
SAFE
Safety is a top priority for CLARK, demonstrated in the SE25-35 with key SAFE features: a self-activating parking brake, low-maintenance wet disc service brakes, a robust nested I-beam mast, twin primary cylinders for visibility and safety, counter-rotating wheels for zero-turn capability, a curve cutback feature for controlled turns, and a stable low-profile, wider design.

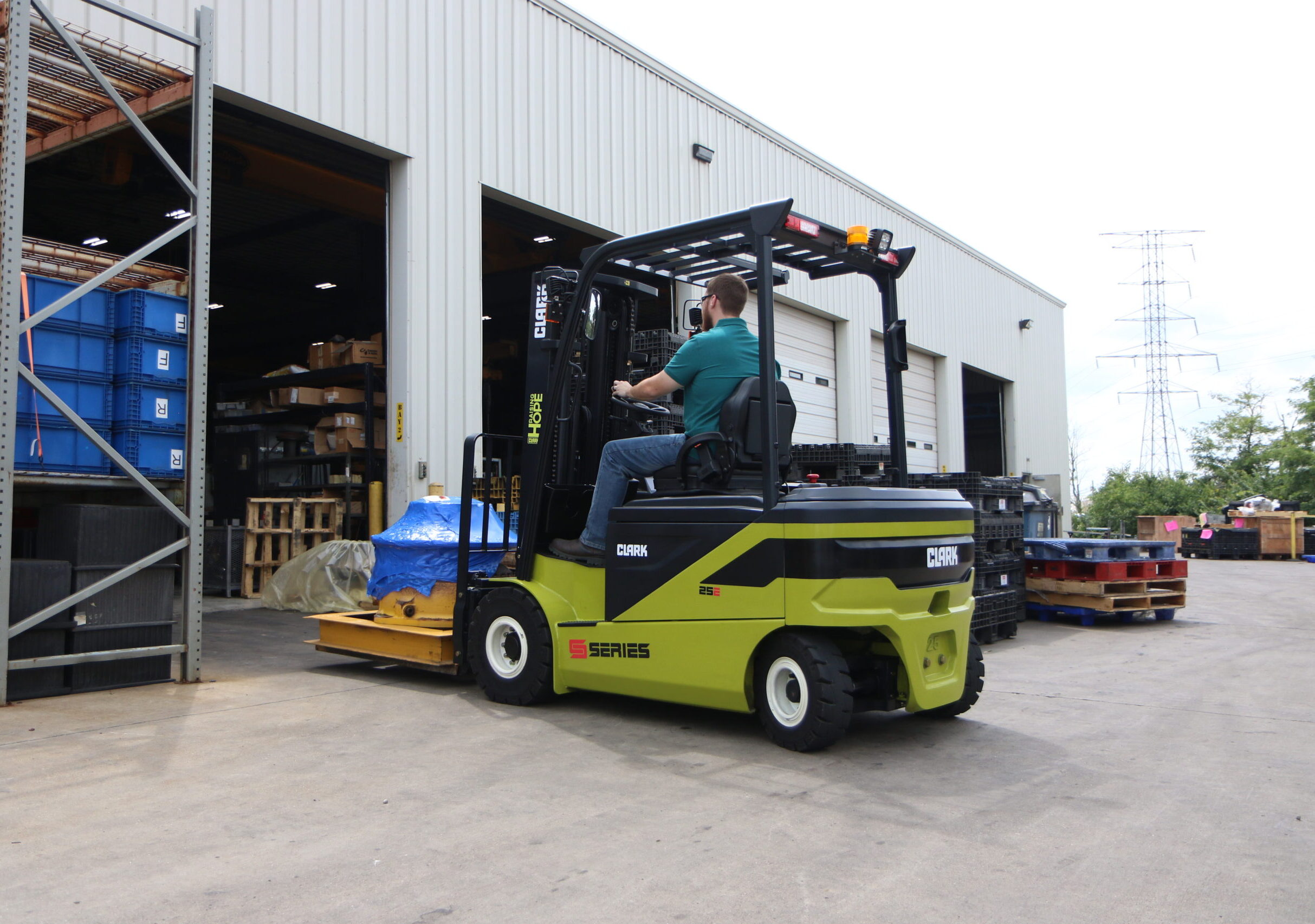

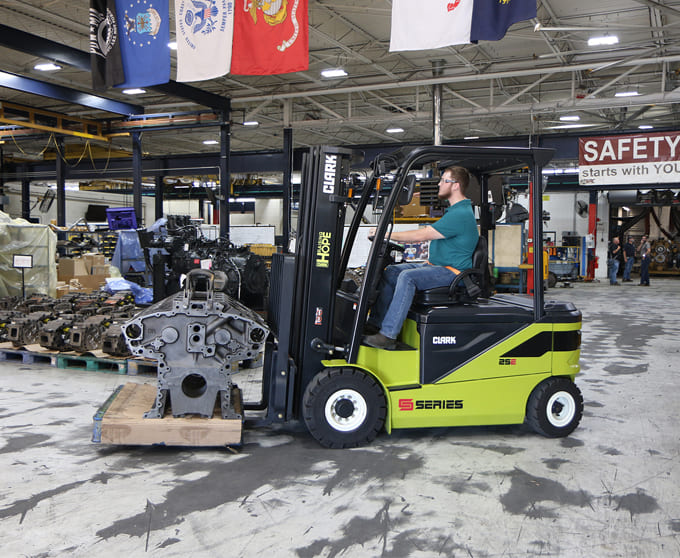

Indoor and Outdoor Applications
Boost productivity and reduce costs with the SE25-35. It seamlessly moves between indoor and outdoor spaces, eliminating the need for multiple trucks. Its low profile, wide stance, and durable build suit both paved outdoor areas and indoor manufacturing facilities. Plus, the optional CLARK S-SERIES heated cabin enables year-round operation in challenging weather.
Ergonomics
The SE25-35 includes a CLARK-standard vinyl full suspension seat for comfort, hood-mounted levers with forward/reverse and horn buttons in S-SERIES style, ergonomically designed pedals for ease of use, optional fingertip controls for improved ergonomics, and an optional heated S-SERIES style cabin.
Solid and Versatile
The drive unit, steer axle, and upright have been field-tested and proven for their strength. The welded heavy gauge frame ensures lasting durability. The CLARK Nested I-Beam mast is specifically designed for stability and longevity. With a full capacity range of 4,000 to 7,000 pounds, this equipment can accommodate a wide range of applications.
Advanced Componentry
The 5.6” interactive SMART dash display features audible and visual warnings, along with a battery discharge meter. The system utilizes CANBus communication. Password protection for the dash allows specific operators to adjust performance modes. Additionally, the vertical mast system enhances accuracy and efficiency.
Applications
Tech Specs
| Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (kmp/mph) | Top Speed Unloaded (kmp/mph) | Power Unit - HP(KW) @rpm | |
|---|---|---|---|---|---|---|---|---|---|
| SE25 | 5000 / 2500 | 87.0 / 2211 | 50.2 | 1274 | 76.5 / 1943 | N/A / N/A | 11.8 / 19.0 | 12.4 / 20.0 | Elec-80V Lithium |
| SE30s | 6000 / 3000 | 87.1 / 2212 | 50.2 | 1274 | 76.5 / 1943 | N/A / N/A | 11.8 / 19.0 | 12.4 / 20.0 | Elec-80V Lithium |
| SE30 | 6000 / 3000 | 87.1 / 2212 | 50.2 | 1274 | 81.8 / 2078 | N/A / N/A | 11.8 / 19.0 | 12.4 / 20.0 | Elec-80V Lithium |
| SE35 | 7000 / 3500 | 87.2 / 2214 | 53.3 | 1353 | 83.0 / 2108 | N/A / N/A | 11.8 / 19.0 | 12.4 / 20.0 | Elec-80V Lithium |
Gallery
