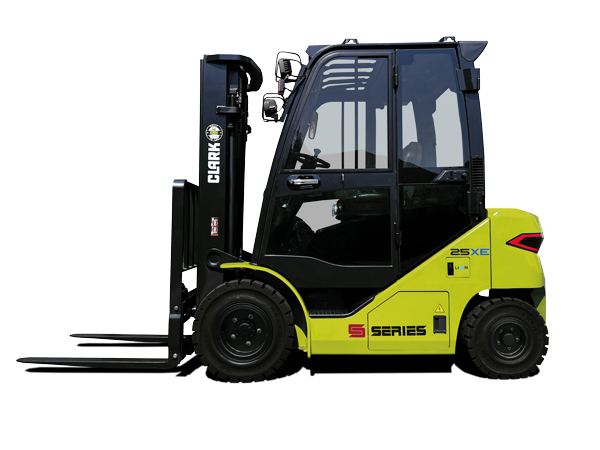

Renegade S25XE
Go Electric Without Compromise Step into the future of material handling with the all-electric RENEGADE. Designed to match the performance of traditional internal combustion (IC) trucks, this zero-emissions powerhouse delivers exceptional results both indoors and out while helping your operation lower its operational costs
Find Dealer
Features
Electric Power. IC Performance. Zero Emissions.
The RENEGADE is built to replace IC trucks without sacrificing capability. Travel, lift, and lower speeds all match or exceed traditional IC trucks, while delivering the added benefits of clean, quiet operation and lower total cost of ownership.
Go Electric Without Compromise
Step into the future of material handling with the all-electric RENEGADE. Designed to match the performance of traditional internal combustion (IC) trucks, this zero-emissions powerhouse delivers exceptional results both indoors and out while helping your operation lower its operational costs
Built for the Outdoors
Why limit electric forklifts to indoor work? With 6.1” ground clearance, 27% gradeability, and weather-protected components, the RENEGADE goes where IC trucks go, without the fuel bill. Pneumatic-style tires (7.00-12 front, 6.00-9 rear) deliver traction and stability in any yard or dock environment.

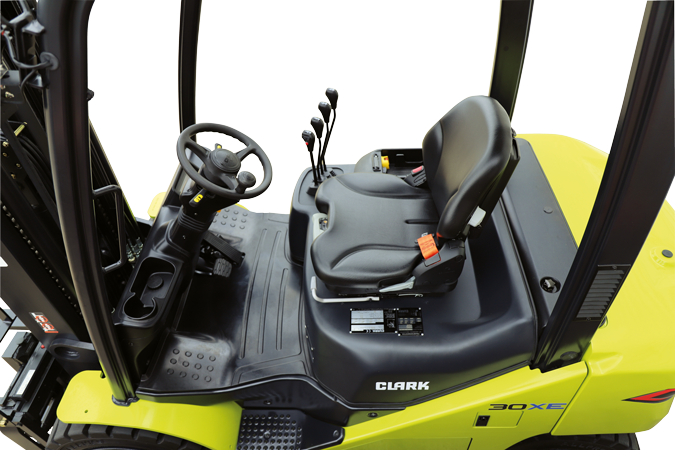

Smart Dash – Standard on Every RENEGADE
The 5.2″ full-color LCD Smart Dash offers a clear view of all truck operations, diagnostics, and performance settings, making operation intuitive and maintenance faster than ever.
Smart Dash Features Include:
- Continuous monitoring of motor & hydraulic pump temperatures
- Automatic performance adjustment to prevent overheating
- Turtle mode for controlled travel speed
- Adjustable top speed and acceleration settings
- Dealer contact info automatically displays with error codes
Applications
Tech Specs
| Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (kmp/mph) | Top Speed Unloaded (kmp/mph) | Power Unit - HP(KW) @rpm | |
|---|---|---|---|---|---|---|---|---|---|
| S25XE | 5000 / 2500 | 85.2 / 2164 | 46.9 (1190) | 107.7 / 2735 | 89.4 / 2270 | N/A / N/A | 18 / 11.2 | 18 / 11. | Electric 80 Volt |
| S30XE | 6000 / 3000 | 85.8 / 2180 | 48.2 (1225) | 110.4 / 2805 | 91.7 / 2330 | N/A / N/A | 18 / 11.2 | 18 / 11.2 | Electric 80 Volt |
| S35XE | 7000 / 3500 | 86.6 / 2200 | 50.3 (1278) | 113.6 / 2885 | 94.1 / 2390 | N/A / N/A | 18 / 11.2 | 18 / 11.2 | Electric 80 Volt |
